Place of Origin: | Chongqing |
Certification: | ISO9001-2008 |
Model Number: | BW-850/2 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 1-100 usd |
Packaging Details: | polywooden package |
Delivery Time: | stocked |
Payment Terms: | T/T or L/C or others |
Supply Ability: | 1000 sets/year |
Machine Type: | Drilling Equipment | Material: | Carbon Steel |
---|---|---|---|
Use: | Well Drilling | Type: | Mud Pump |
Processing Type: | Forging, Casting, Machining |

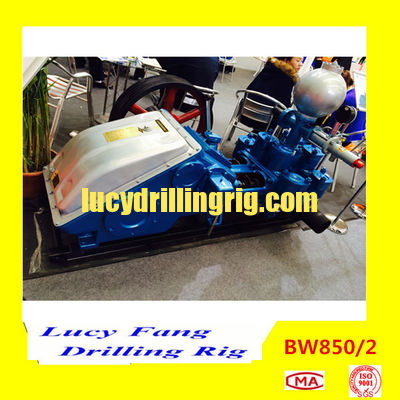

Powerful BW-850/2 Mud Pump
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China
Skype: lucyfang9 ; website: www.lucydrillingrig.com. email: lucyfang15@yahoo.com
M: +86-13628481197 TEL.:+86-15923510719
Specifications:
Type |
Horizontal, double cylinder, double Acting Reciprocating Piston Pump |
|
Stroke (mm) |
180 |
|
Cylinder Bore (mm) |
150 |
|
Pump Speed min-1) |
82 |
58 |
Discharge (l/min) |
850 |
600 |
Pressure (MPa) |
2.0 |
3.0 |
Volume Efficiency (%) |
85 |
|
Total Efficiency (%) |
72 |
|
Suction Height (m) |
|
|
Suction Pipe Inner Dia.(mm) |
125 |
|
Discharge Pipe Dia.(mm) |
65 |
|
Driving Power (KW) |
37 |
|
Speed of V-pulley (r/min) |
470 |
|
Diameter Of V- Pulley (mm) |
Φ700*C-5 |
|
Dimension (mm)(length×wide ×height) |
Pump:2000*1030*1400 |
|
Weight(kg) |
Pump:1500
|
