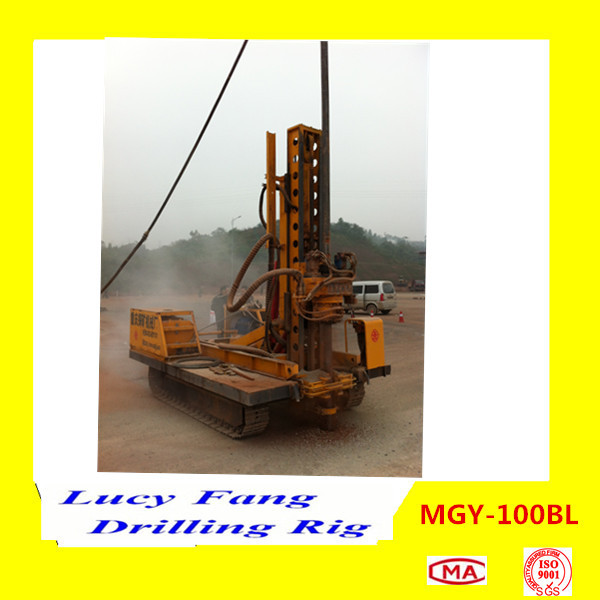

Multi-function MGY-100BL Crawler Mounted Hydraulic Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China
Skype: lucyfang9, Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com
M: +86-13628481197 TEL.:+86-23-65311478 Fax.:+86-23-65311383
One . Applications:
MGY-100BL Hydraulic anchor drilling rig is new generation of hight-efficient hydraulic anchor and micro-pile drilling rig developed based on our MGY-100A and MGY-100B drilling rig which are split-type of drilling rig, can be widely used in the field of municipal construction deep excavation, slope stable and cable construction, pipe roof construction, jet grouting hole and micro-pile hole drilling , water well drilling and so on.
Two. Features
1. High construction efficiency. As the rig uses a hydraulic chuck with large inner hole, a fixture 6m drill rod in one time, to reduce the numbers of adding and screw-off drill rod and improve the effective working time.
2. As a result of crawler chassis drive, and the rig mast down or up of position adjustment of 400mm. Hole position adjustment time is greatly reduced.
3 The rig has a holder, shackle device. Through cooperation with the operation of the power head chuck, to reduce the operator's labor intensity.
4 The rig adapt to a wide processes. As the rig has a hydraulic chuck with inner hole diameter of Φ110 mm . No need to make any alteration of top-drive head, you can adapt a single tube, double tube, three tube to make jet-grouting, reverse circulation drilling and Φ108 pipe-roof construction.
Main Technical Specifications
1 |
Theory hole diameter |
Φ110 ~ Φ400 mm |
2 |
theory drilling depth |
150 ~ 40 m |
3 |
hole angle range |
-20 °~ 90 ° |
4 |
drill rod
|
Φ89 ,Φ73,Φ89
|
hexagonal drill rod:Φ89x79;Φ70x63
|
||
5 |
Max.torque of top-drive head |
6500 Nm |
6 |
rotation speed of top-drive head |
Speed I:35,70.r/min; Speed Ⅱ :70,140(r/min) |
7 |
feed/lifting speed |
0-0.5 m/s
|
9 |
pulling/pushing force |
80 / 57 kN |
10 |
Max. feed stroke |
1900mm+ rear suspension 3200mm+1100mm=6200 mm |
11 |
height of rotation center |
Max.2150mm,Min.1750mm,height differential 400 mm |
12 |
gripping and screw-off device |
inner dia.of slipperΦ120 mm clipping force 240KN,screw-off torque18KNm. |
13 |
power unit |
electric motor/ diesel engine: 30kw |
14 |
climbing angle |
30 º |
15 |
crawling speed |
1.95 Km/h |
16 |
whole weight |
4500 kg |
17 |
Overall dimension(L*W*H) |
3800 x 2300 x 2000 mm |
