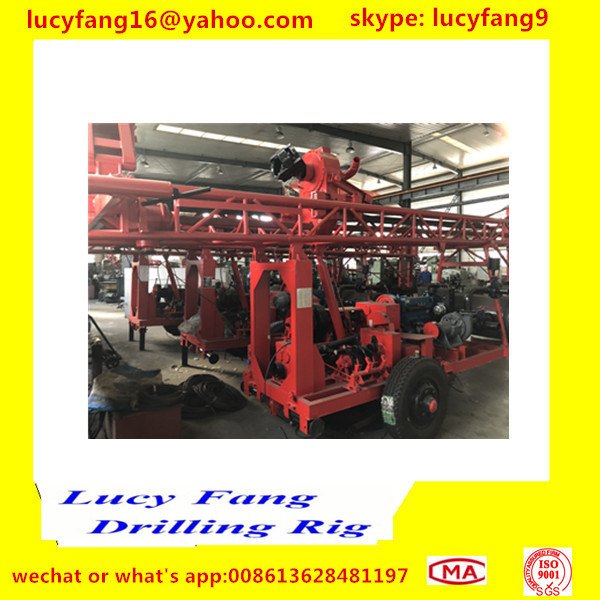

China Popular SDQuality Trailer Mounted Mobile CST-200 Hydraulic Big Pile hole Drilling Rig For 200 m Depth
Main purpose and charateristic:
CSD-200 trailers drilling rig is appropriatefor:
Drilling wells for drinnking water in urban and rural.
Drilling for agricultural irrigation.
Drilling Well for industrial and other USES of water.
Engineering construction such as high- rise buildings, brrdge,
geological mining, ports, DAMS and
other foundation pile
This model can be moved by tractors, automobiles and other tractors, which is convenient and quick to move and brings convenience to construction. Equipped with hydraulic tower device to make the landing more convenient..
The standard configuration of the drill is diesel engine as the driver, but also according to user requirements optional three-phase AC generatoor set. diesel engine can be used as the power, or external power supply can be contnected to achieve diesel-electric dual-power drilling operations.
The power head of the drilling rig is our patented product, designed and manufactured by ourselves, and enjoys intellectual proper
rty right. The main parts of the winch, gearbox, tower box, chassis are our r & d and production. This model is a mature product developed by our factory with years of painstaking efforts.well received by domestic abd foreign customers.
This model can be mud drilling craft and air drilling craft, apply to claypan, sand layer, lithosphere work.
This mode is big torque , elevating big power , foreful power, simple operation, easy and quick to add and unload drill pipe. Less investment, high efficiency.
| MAIN SPECIFICATION |
| Hole Diameter:(mm) 90-1200 |
Main Hoist Listing Force:(T) 2.5 |
| Hole Depth:(m) 200 |
Feed Thrust:(T) 2 |
| Run of Rod:(m) 3-6 |
Dimensions: (mm) Working conditions 4910x2020x6650 |
| Drill Rod Diameter:(mm): Ø60 Ø73 Ø89 Ø95 Ø133 |
Transport status 6700x2020x2750 |
| Drilling Technology: Normal and Reverse Circulation for Both Mud and air |
Supporting Form: Mechanical Screw |
| Down The Hole Hammers: Middle-High-Pressure air |
Rig Mass: 4200 |
| Drill Head Inside Diameter:(mm) Ø35 Ø60 Ø80 Ø129 |
Chassis: Trailer with two wheels |
| Drill Head Lifting Speed:(m/s) 0.25 0.15 |
Power Unit: Disel Engine |
| Drill Head Lifting Force:(T) 15 |
Power : (kw) 40 |
| Drill Head Spin Speed:(r/min) A(Forward:13-22-48)(Reverse: 10-17-38) |
Mud Pump: LBN-20 Nomal and Reverse Circulation Pump Group |
| B(Forward: 48-84-184(Reverse: 37-65-142) |
Flow:(m3/h) 80 |
