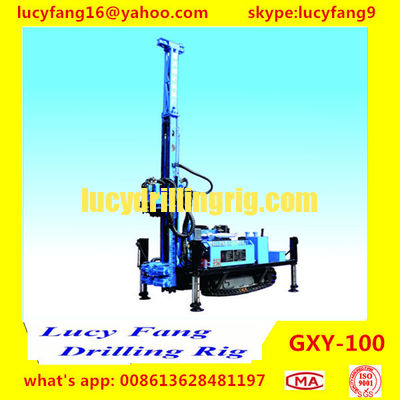

China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation

China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation

    • China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation
    • China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation
    • China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation
  • China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation

    Product Details:

    Place of Origin: Chongqing
    Certification: ISO9001-2008
    Model Number: GXY-100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 1-1000USD
    Packaging Details: nuke
    Delivery Time: stocked
    Payment Terms: T/T or L/C
    Supply Ability: 1000sets
    Contact Now
    Detailed Product Description
    Type: Mobile Hydraulic Rig Machine Type: Drilling Equipment
    Material: Carbon Steel Processing Type: Forging, Casting, Machining
    Use: Ore Mining

     GXY-100 DTH Hammer Core Drilling Rig

    ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;

    Skype: lucyfang9, Website: ww.lucydrillingrig.com, email: lucyfang15@yahoo.com;

    M: +86-13628481197 TEL.:+86-15923510719,15111813754



    1.General description:
         The full hydraulic drilling rig is mainly used for soil investigation of railway, highway, water conservancy, hydropower station, anchor hole, underpinning of deep foundation engineering, water well and pipe-roof drilling, and blasting hole drilling as well.


    2.Features:
    (1) the drilling machine has the advantages of compact structure, conveniently move and locate ; adopts full hydraulic control, flexible operation, time-saving. Suitable for forward, Reverse Circulation DTH hammer drilling.
    (2) the machine with low speed and big torque motor, so that the machine stable performance, reliable, long working life.
    (3) the machine has wide applications, strong drilling ability; power head is a through hole structure, high drilling efficiency.
    (4) the machine drilling angle range, 0° to 90° .
    (5) the machine is suitable for various drilling methods, mainly for the Forward, Reverse Circulation DTH hammer.


    GXY-100 Technical Specifications



    hole diameter (mm):

    150

    drilling angle (°):

    0 ~ 90

    theoretical depth:

    30m~100m

    power head push stroke:

    2500mm +( chuck rear suspension of )1000mm=3500 mm

    power head output speed (r/min):

    0 ~ 350r/min

    power head output maximum torque (N · m):

    4500N.m



    power head stroke (mm):

    1800

    the power chuck hole:

    Φ 80mm

    power head maximum feed force / pull force (kN):

    43/50 (0~44 continuously adjustable)

    The rated pressure of hydraulic  (Mpa):

    18

    diesel models:

    4100 (diesel engine)

    hoisting capacity:

    3000Kg

    host size (L*W*H) (mm):

    4200 x 2000 x 2000

    China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation

    China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation

    China Hot Multi-function GXY-100 RC Core Sampling Drilling Rig For Soil Investigation
