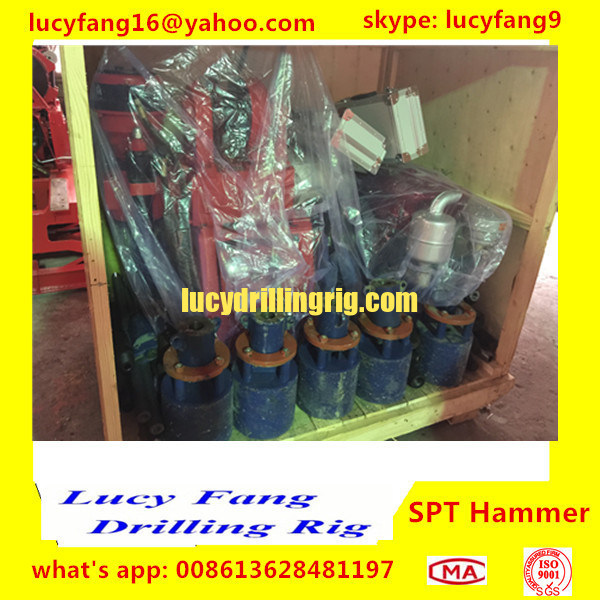

China Made Cheapest GX-50 Mini Geotechnical Drilling Rig with SPT Hammer for soil Testing

China Made Cheapest GX-50 Mini Geotechnical Drilling Rig with SPT Hammer for soil Testing

    • China Made Cheapest GX-50 Mini Geotechnical Drilling Rig with SPT Hammer for soil Testing
    • China Made Cheapest GX-50 Mini Geotechnical Drilling Rig with SPT Hammer for soil Testing
    • China Made Cheapest GX-50 Mini Geotechnical Drilling Rig with SPT Hammer for soil Testing
    • China Made Cheapest GX-50 Mini Geotechnical Drilling Rig with SPT Hammer for soil Testing
  • China Made Cheapest GX-50 Mini Geotechnical Drilling Rig with SPT Hammer for soil Testing

    Product Details:

    Place of Origin: Chongqing
    Certification: ISO9001-2008
    Model Number: GX-50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sets
    Price: 1-4500USD/set
    Packaging Details: polywooden box
    Delivery Time: stocked
    Payment Terms: T/T or L/C
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description

    GX-50 Skid Mounted Spindle Type Core Drilling Rig


       ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
     Contact person: Lucy Fang; Skype: lucyfang9 , Website: www.lucydrillingrig.com email: lucyfang15@yahoo.com;  Mobile: +86-13628481197 TEL.:+86-15111813754 ; +86-15923510719



    1. APPLICATIONS:

        Geological drilling for mineral, railroad, highway, bridge tunnel, foundations of power station, Civil and industrial buildings, also drilling anchoring hole and blasting hole etc. and also hydro-geological drilling for water.

    2. FEATURES:

    ◆ Spindle type mechanical transmission, hydraulic feed.
    ◆ Hydraulic retracting lets drill body away from the drilling hole.
    ◆ Hydraulic chuck, hand-powered chuck and hand-powered cylinder chuck, they are exchangeable.
    ◆ Friction hoist, percussion drilling, easy to pull and push casing if equipped with vibrator.
    ◆ Advanced design, reasonable arrangement, compact structure, beautiful looking.
    ◆ Light weight, good detachability, easy to operate.
    ◆ Equipped with special 6mA type derrick for user ordering.


    Technical Specifications




    final hole dia (mm)

    150;130;110;91;75


    drilling capacity (m)

    20;30;50;70;100


    angle range

    0-90°


    spindle speeds (r/min)

    99;236;378


    max torque (Nm)

    620


    spindle max pull force (KN)

    15


    spindle stroke (mm)

    400


    max hoist lift force with single rope (KN)

    10


    Oil pump


    CB3-10-CFPL gear oil pump


    Power unit


    diesel engine


    Changchai diesel 195 2000r/min 8.8KW


    electric motor

    Y130M-4;1440r/min 7.5KW


    drill body weight(Excluding power)

    360


    overal dim (L×W×H)(mm)

    1360×620×1080
