Place of Origin: | Chongqing |
Certification: | ISO9001-2008 |
Model Number: | XY-2B |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 1-12000USD/set |
Packaging Details: | polywooden box |
Delivery Time: | stocked |
Payment Terms: | T/T or L/C |
Supply Ability: | 1000 sets/year |
Colour: | Red Or Yellow | Application: | Soil Testing |
---|---|---|---|
Torque: | MAX. 3300 Nm | Rotary Speeds: | 8 Forward Speeds |
Reverse Speeds: | 2 Reverse Speeds | Power Unit: | Deutz Engine F4L912,30 KW |
Weight: | 1200 Kg Excluding Power | Dimension: | 2220*900*1880 Mm |
Skype: | Lucyfang9 | What's App: | 008613628481197 |

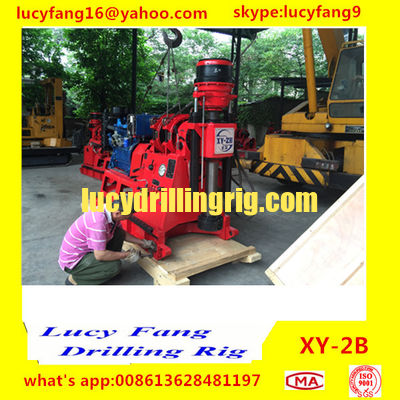

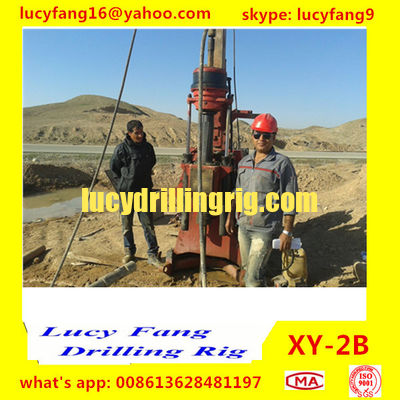

XY-2B Portable Core Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China
Skype: lucyfang9 , Website: www.lucydrillingrig.com email: lucyfang15@yahoo.com;
M: +86-13628481197 TEL.:+86-15111813754 ; +86-15923510719
Applications:
XY-2B drill rig derived from XY-2 drill rig, it not only keeps all performances of XY-2 drill, but also adds spindle inner hole diameter to 96mm. It is mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in geotechnical, hydro-geological, water well and mini-pile grouting hole drilling.It is especially suitable for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with XY-2 drill in all design but hydraulic chuck and rotary head modified.
Technical Specifications
|
AW rod |
530 m |
BW rod |
420 m |
|
NW rod |
320 m |
|
AQ rod |
565 m |
|
BQ rod |
460 m |
|
NQ rod |
350 m |
|
HQ rod |
250-300 m |
|
Φ73 rod |
100 m |
|
Φ60 rod |
200 m |
|
Φ50 rod |
380 m |
|
Φ42 rod |
530 m |
|
|
Forward |
57;99;157;217;270;470;742;1024 |
Reverse |
45;212 |
|
|
3200 |
|
|
0-90° |
|
|
60/45 |
|
|
560 |
|
|
30 |
|
|
96 |
|
|
CBK1020/8 |
|
|
|
Y180L-4,22Kw |
|
395K2,19.85Kw |
|
|
2220×900×1880 |
|
|
1200 |
