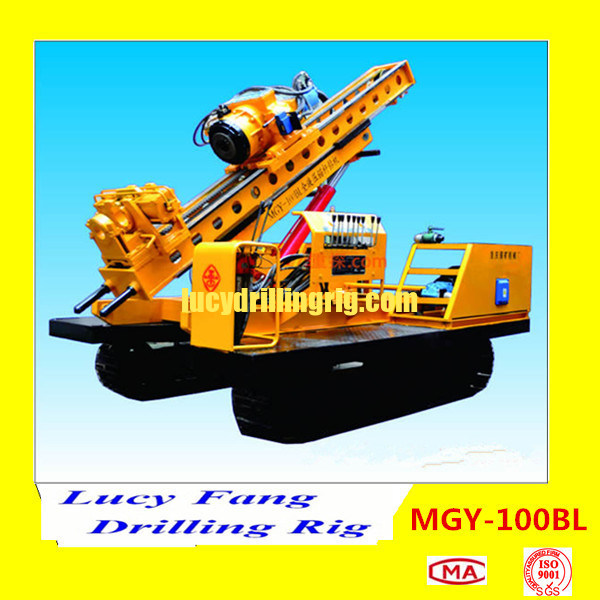

Multi-function MGY-100BL Crawler Mounted Hydraulic  Drilling Rig


ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;

Skype: lucyfang9 , Website:, email:

M: +86-13628481197 TEL.:+86-23-65311478 Fax.:+86-23-65311383


One . Applications:

      MGY-100BL Hydraulic anchor drilling rig is new generation of hight-efficient hydraulic anchor and micro-pile drilling rig developed based on our MGY-100A and MGY-100B drilling rig which are split-type of  drilling rig,  can be widely used in the field of municipal construction deep excavation, slope stable and cable construction, pipe roof construction, jet grouting hole and micro-pile hole drilling , water well drilling and so on.

Two. Features

1. High construction efficiency. As the rig uses a hydraulic chuck with large inner hole, a fixture 6m drill rod in one time, to reduce the numbers of adding and screw-off drill rod and improve the effective working time.
2. As a result of crawler chassis drive, and the rig mast down or up of position adjustment of 400mm. Hole position adjustment time is greatly reduced.
3 The rig has a holder, shackle device. Through cooperation with the operation of the power head chuck, to reduce the operator's labor intensity.
4 The rig adapt to a wide processes. As the rig has a hydraulic chuck with inner hole diameter of Φ110 mm . No need to make any alteration of top-drive head, you can adapt a single tube, double tube, three tube to make jet-grouting, reverse circulation drilling and Φ108 pipe-roof construction.

Main Technical Specifications



Theory hole diameter

Φ110 ~ Φ400 mm


theory drilling depth

150 ~ 40  m


hole angle range

-20 °~ 90  °


drill rod






Φ89 ,Φ73,Φ89


hexagonal drill rod:Φ89x79;Φ70x63



Max.torque of top-drive head

6500  Nm


rotation speed of top-drive head

Speed I:35,70.r/min; Speed Ⅱ  :70,140(r/min)


feed/lifting speed

0-0.5    m/s



pulling/pushing force

80 / 57   kN


Max. feed stroke

1900mm+ rear suspension 3200mm+1100mm=6200 mm


height of rotation center

Max.2150mm,Min.1750mm,height differential 400 mm


gripping and screw-off device

inner dia.of slipperΦ120 mm clipping force 240KN,screw-off torque18KNm.


power unit

 electric motor/ diesel engine: 30kw


climbing angle

30 º


crawling speed

1.95  Km/h


whole weight

4500  kg


Overall dimension(L*W*H)

3800 x 2300 x 2000 mm
