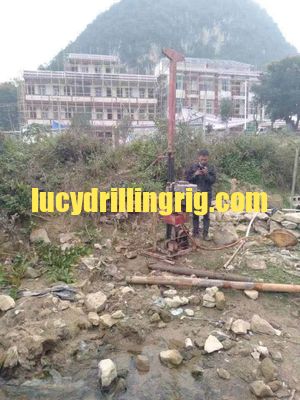

China Popular SDQuality Trailer Mounted Drilling Rig For 300m depth
Main application and trait:
GSD-2D model drilling rig is fit for :
tunnel drill
Drilling wells for drinking water in urban and rural.
Drilling wells for agricultural irrigation.
Drilling wells for industrial and other USES of water.
Engineering construction such as high-rise buildings, bridge, geological mining, ports, DAMS and other foundation pile.
This model can be moved by tractors, automobiles and other tractors, which is convenient and quick to move and brings conven to construction. Equipped with hydraulic tower device to make the landing more convenient.
The standard configuration of the drill is diesel engine as the driver, but also according to user requirements optional three-phase AC generator set,diesel engine can be used as the power, or external power supply can be contnected to achieve die-electric dual-power drilling operation.
The power head of the drilling rig is our pantented product, designed and manufactured by ourself, and enjoy intellectual proper rry right.
The main parts of the winch, gearbox, tower box, chassis are our r&d and production. This model is mature product developed by our factory with years of painstaking efforts well received by domestic abd foreign customers.
This model can be mud drilling craft and air drilling craft, apply to claypan, sand layer, lithosphere work.
This model is big torque, elevating big power, foreful power, simple operation, easy and quick to add and unload drill pipe. Less investment, high efficiency.
| MAIN SPECIFICATION |
| Hole Diameter: (mm) 600-1200 |
Main Hoist Lifting Force(T) 3 |
| Hole Death: (mm) 50 |
Feed Thurust: (T) 2 |
| Drill Rod Diameter: (mm) ø133 |
Diamensions:(mm) Working condlitions 4700x1750x3900 |
| Drilling technology: Normal and Reverse Circulation for Both and Air |
Transport status 4150x1750x2720 |
| Down The Hole Hammers: Middle-High-pressure Air |
Supporting Form: Mechanical Screw |
| Drill Head Inside Diameter: (mm) ø120 |
Mask Up-Down: Mechanical Unit |
| Drill Head Lifting Force: (T) |
Rig Mass(kg) 2600 |
| Drill Head Spin Speed:(r/min)A(Forward:13-22-48)(Reverse:10-17-36) |
Chassis: Trailer with four wheels |
| B(Forward:48-84-184)(Reverse:37-65-142) |
Power: (KW) 22 |
| |
Mud Pump: Sand Pump Group |
